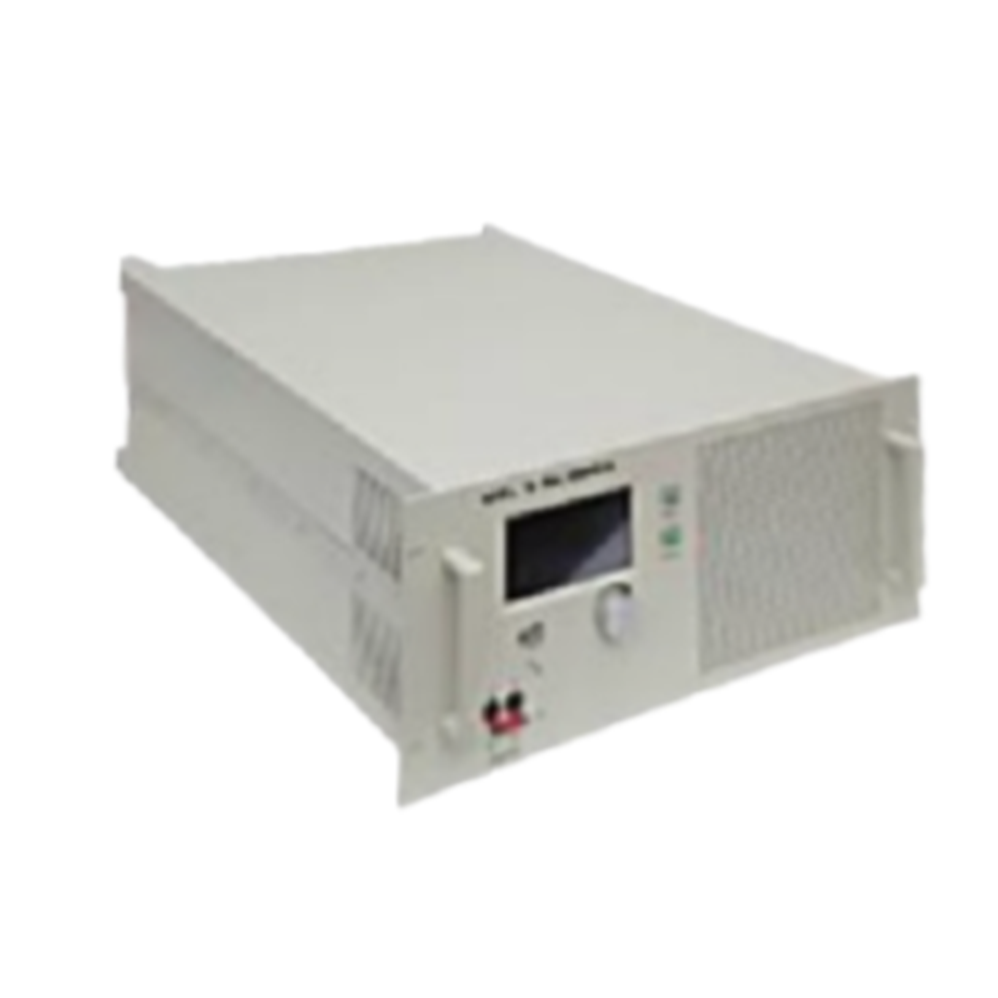

18~26.5GHz 200W Travelling Wave Tube Power Amplifier TWT PA for Strong Signal Amplification

Brand Name : SWT

Model Number : SWT-18~26.5GHz 200W

Place of Origin : China

MOQ : 1/pcs

Price : US Dollar (USD)1/pcs

Payment Terms : T/T, D/P, D/A, L/C, Western Union

Supply Ability : 100pcs/Month

Delivery Time : 5-8 working days

Packaging Details : Standard Packing

Name : RF Power Amplifier

Operating Frequency : 18~26.5GHz

Output Power : 200W

Gain : 53 dB

Overall Dimensions : 443×600×178mm3

Energy Interface : Input 2.4mm (F) / Output Wr42

Output Wr42 Cooling Method : Built-in Air Cooling

Voltage U : 220VAC

Current I : 5A

Application : Satellite Communication, Radar Systems

Weight : ≤ 35kg

Contact Now

18~26.5GHz 200W Travelling Wave Tube Power Amplifier (TWT PA) for Strong Signal Amplification and Long-Distance Transmission

Product Description

This Travelling Wave Tube Power Amplifier (TWT PA) operates over a frequency range of 18 GHz to 26.5 GHz, suitable for various advanced communication and radar systems. It provides 200W of high output power, meeting the needs for strong signal amplification and long-distance transmission. The amplifier features continuous wave operation, ensuring stable performance and consistent signal quality. It is ideal for applications such as satellite communications, radar systems, and electronic warfare, where high power and reliability are essential.

Input power	0dBm	-3~3dBm
Input VSWR	2.0:1	≤2.5:1
Output VSWR	2.0:1	≤2.5:1
Harmonic rejection ratio	-8dBc	-7dBc
Noise power spectral density	-75dBm/MHz	≤-70dBm/MHz

Freq (GHz)	Typ. Power (W)	Min. Power (W)
18	232	200
19	245	200
20	251	200
21	258	200
22	250	200
23	246	200
24	238	200
25	232	200
26	228	200
26.5	223	200
